Markings |
Handle |
Length |
Other characteristics |
| Early Pre-A |
Long slot screwdriver
-click here for observations of very early 356 screwdrivers
-Jorg 1661 "Green"???
(click on the picture for more information)
|
|
|
-the earlier Jorg 1661 screwdrivers had no plating |

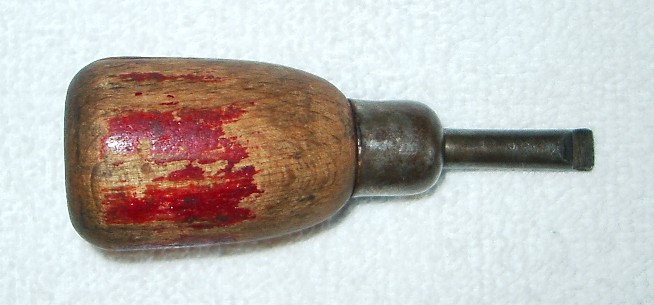

Short slot screwdriver

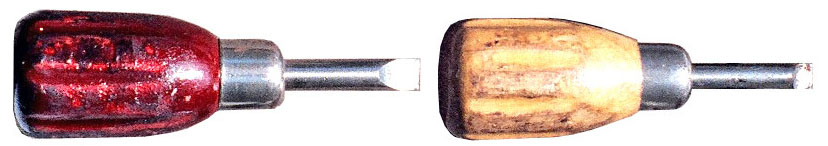

-may have had two in each kit, with different sizes. This picture shows two found in a very original kit. The one on the left is the same as later ones, with about a 6mm wide tip/shaft. The one on the right is smaller, and could be used on the screw-type electrical connectors.
 |
-larger one was painted red, smaller one was clear varnished. |
|
|
| Late Pre-A |

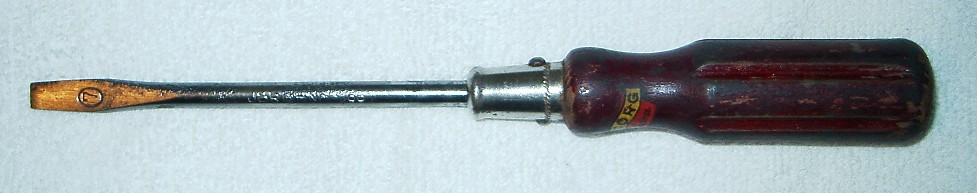

Long slot screwdriver

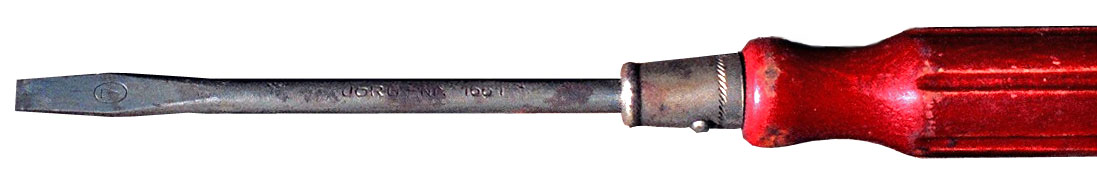

-Jorg 1661
(this picture shows the early non-plated variety in an unrestored condition) |

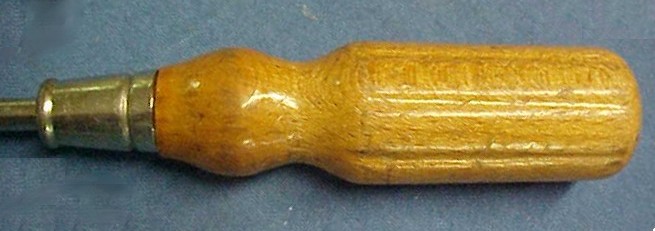

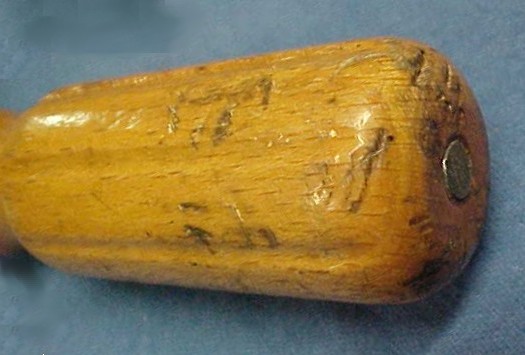

Some Jorg 1661 may have had a blonde finished handle. |
250mm |
-the earlier Jorg 1661 screwdrivers had no plating
-marked with a "7" in an oval on the tip

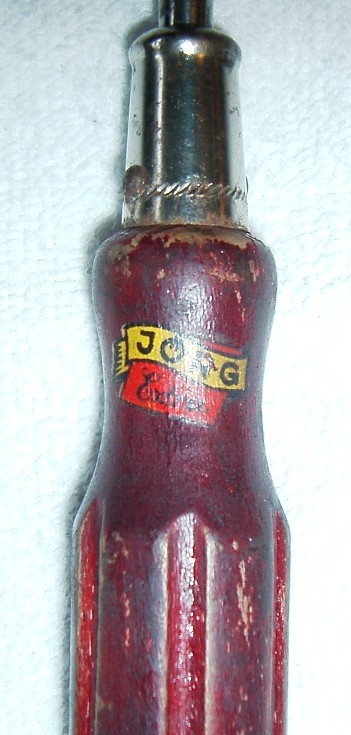

-JORG decal on handle near ferrule
-"keystone" tip (tip flares out wider than the shaft and is flattened) |
Short slot screwdriver
-one or two (see above)
|
|
85-90mm |
|
| early A (1956) |

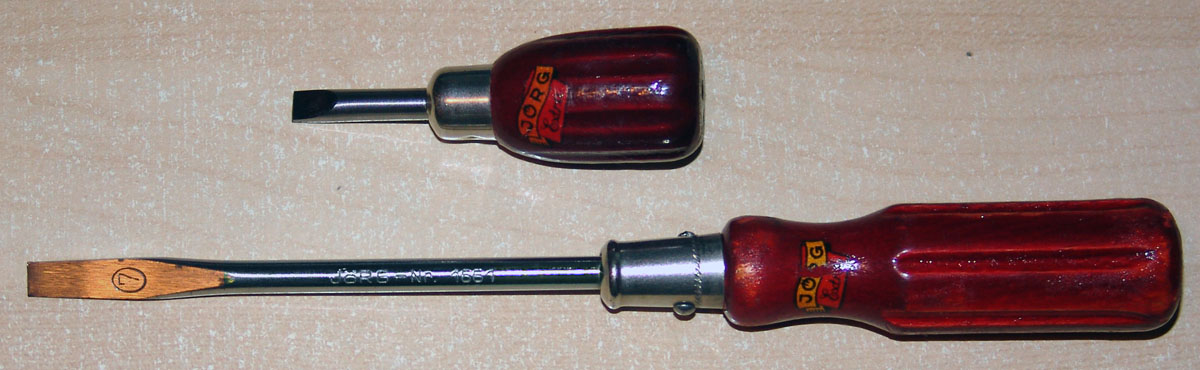

Long slot screwdriver

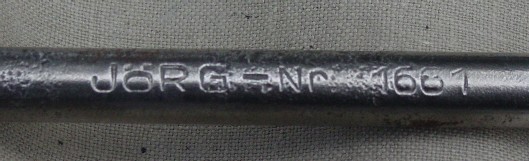

JÖRG-Nr. 1661 marked on shaft
CHROM-VANADIUM on the opposite side
(this screwdriver was wire brushed to remove rust)
Here's an unrestored pair:
|

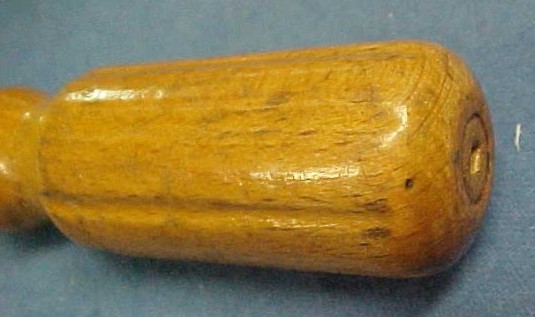

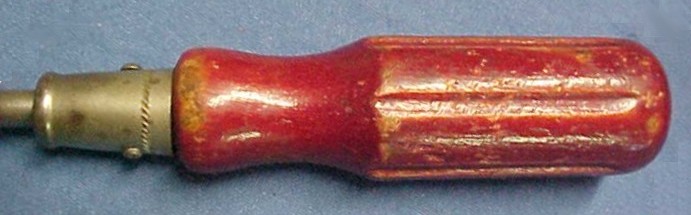

Reddish-brown painted wood, flutes are usually painted
 |
240mm |
-possibly plated
-marked with a "7" in an oval on the tip
-JORG decal on handle near ferrule
-"keystone" tip (tip flares out wider than the shaft and is flattened) |

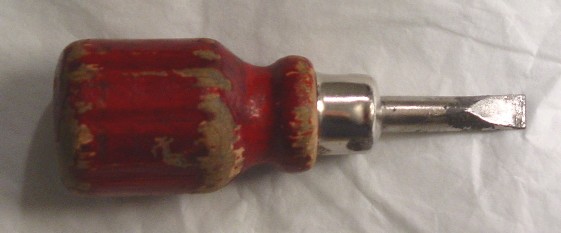

Short slot screwdriver
No markings
 |
"tear drop" shape |
85-90mm |
-"coffin" tip (width of blade is same as width of shaft)
-may have had early style of JORG decal |
| late A (1957-59) |

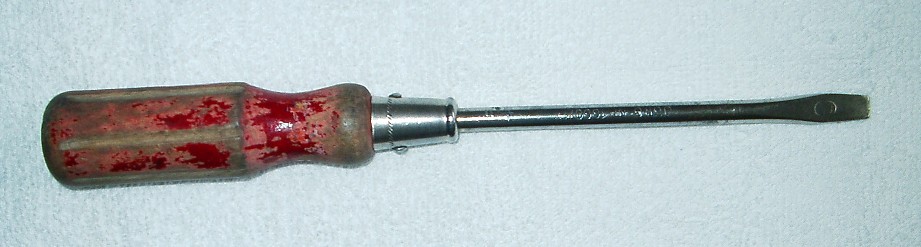

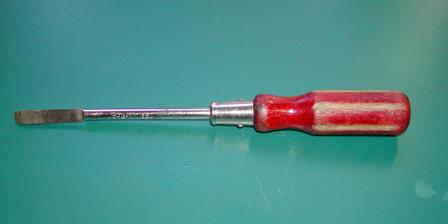

Long slot screwdriver
JÖRG-Nr. 1660/1 marked on shaft
CHROM-VANADIUM on the opposite side
 |
Reddish-brown painted wood, flutes are not painted |
|
-plated shaft
-marked with a "7" in an oval on the tip
-JORG decal on handle near ferrule
-"keystone" tip (tip flares out wider than the shaft and is flattened) |

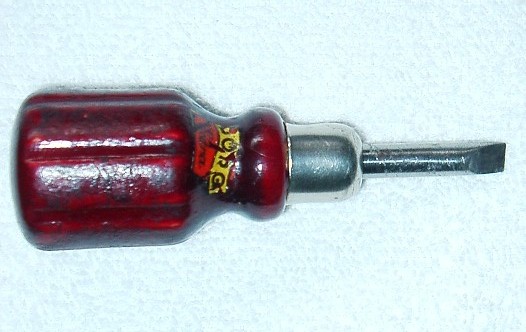

Short slot screwdriver
No markings
 |
|
93mm |
-"coffin" tip (width of blade is same as width of shaft)
-some had JORG decal |

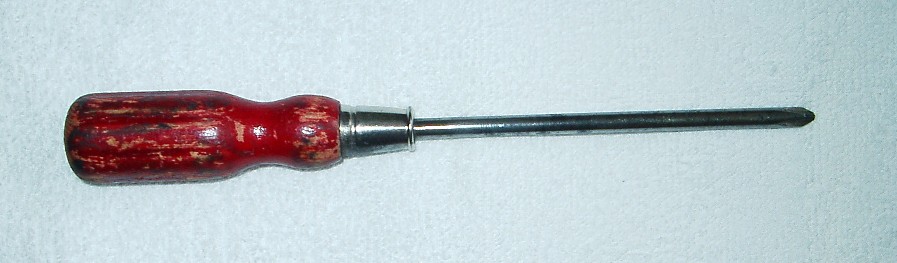

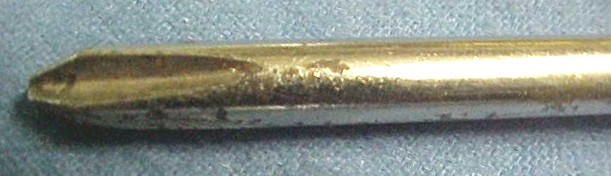

Phillips screwdriver
No markings
 |
Reddish-brown painted wood, flutes are painted |
215mm |
|
| T5 B (1960-1961)
|
Long slot screwdriver
JÖRG-Nr. 1660/1 marked on shaft, CHROM-VANADIUM on the opposite side
 |
Reddish-brown painted wood, flutes are not painted |
|
-JORG decal on handle near ferrule

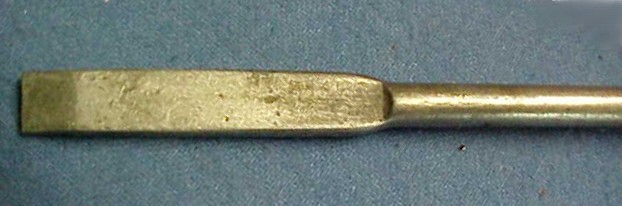

-tip is flattened and lengthened so that it can be used to hold the pulley from turning when adjusting the fan belt (retains the 1660/1 part number from 1959 and earlier) |

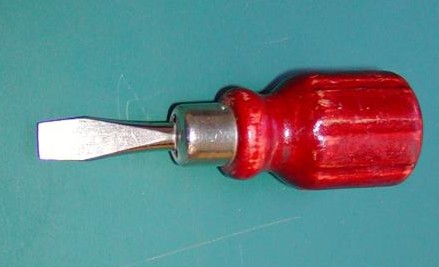

Short slot screwdriver
No markings
 |
Reddish-brown painted wood, flutes are painted |
100mm |
-"keystone" tip (tip flares out wider than the shaft and is flattened) |

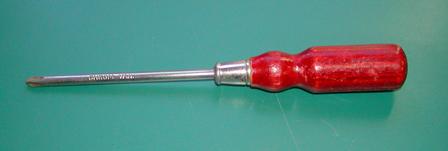

Phillips screwdriver
Early: no markings (same as A)
Late: "Chrom-van" near end, slightly different handle shape than the A

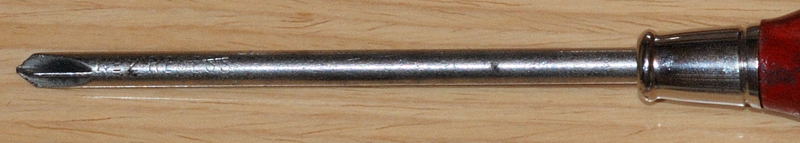

Another type (maybe around 1961?):
marked "No2 Recess"
The first time I saw this type I thought it must have a replacement shaft, especially since it measured 1/4" in diameter (6.35mm) rather than 6mm like the other Phillips drivers. I have subsequently heard of and seen similar drivers in original kits dating from around 1961.
|
Reddish-brown painted wood, flutes are painted |
220mm |
|

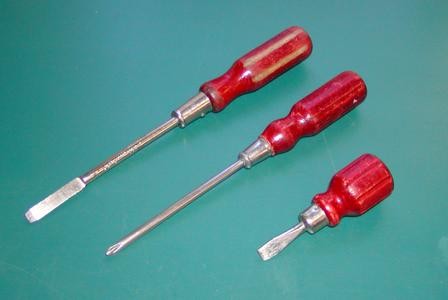

| T6B (1962) |
Long slot screwdriver
No Markings, or...
Might have JÖRG-Nr. 1660/1 marked on shaft, CHROM-VANADIUM on the opposite side (like the T6B)
|
-More "elongated" handle than the previous version: more like the previous Phillips.
-Red painted wood handles, flutes painted
(same shape and size as Phillips)
|
235mm
(?) |
-tip is flattened and lengthened so that it can be used to hold the pulley from turning when adjusting the fan belt |
Short slot screwdriver
No markings
|
Red painted wood handles, flutes painted |
100mm |
|
Phillips screwdriver
"chrom-van" stamped near tip
|
Red painted wood handles, flutes painted
(same shape and size as long slot) |
210mm
|
|
| T6B (1963) |

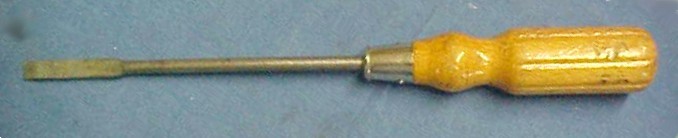

Long slot screwdriver
No markings
 |

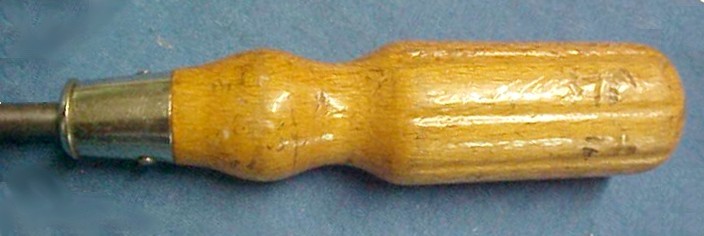

Blonde (clear varnish) wood handle
 |
270mm |
-tip is flattened and lengthened so that it can be used to hold the pulley from turning when adjusting the fan belt
 |
Phillips screwdriver
No markings
 |
Blonde (clear varnish) wood handle
 |
210mm |
 |

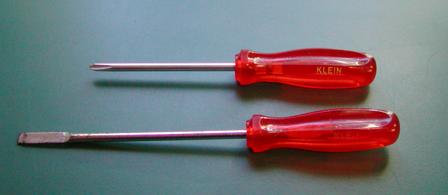

| C (1964-65)
|

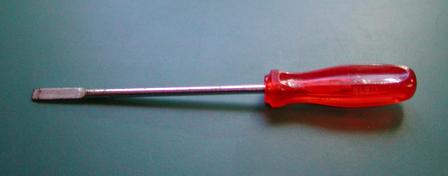

Long slot screwdriver

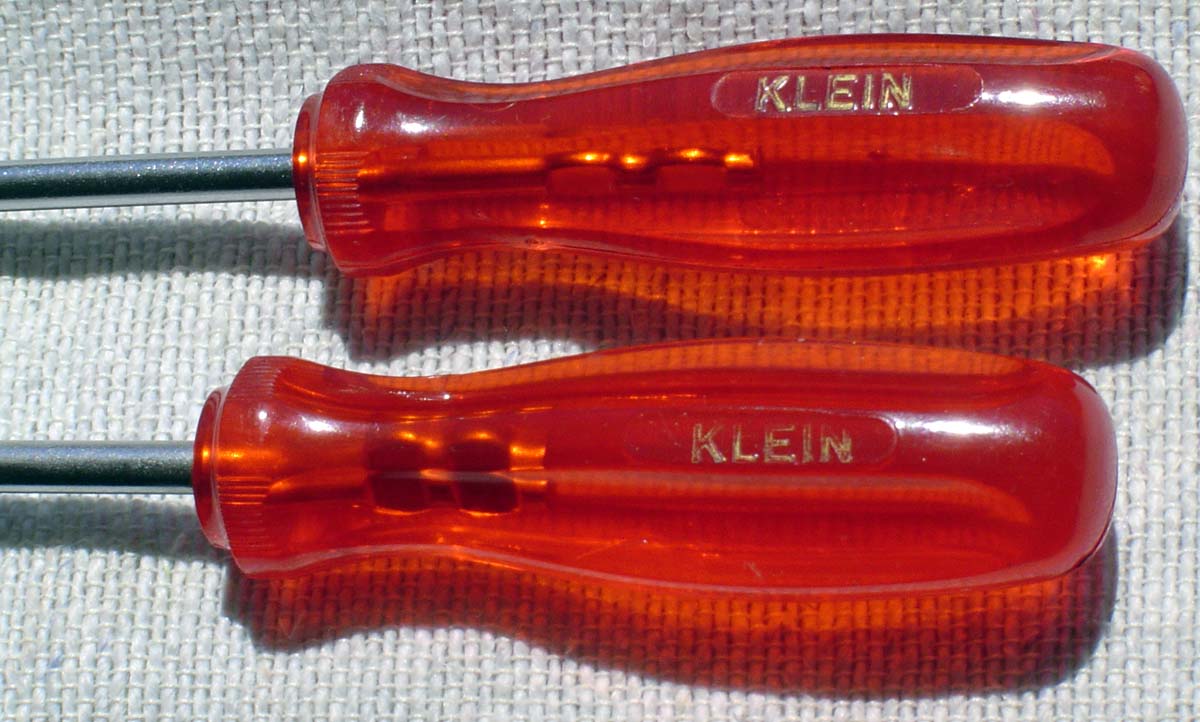

Klein brand
|
translucent red plastic
|
|
-tip is flattened and lengthened so that it can be used to hold the pulley from turning when adjusting the fan belt |

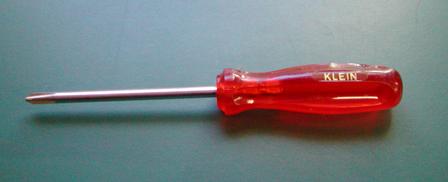

Phillips screwdriver

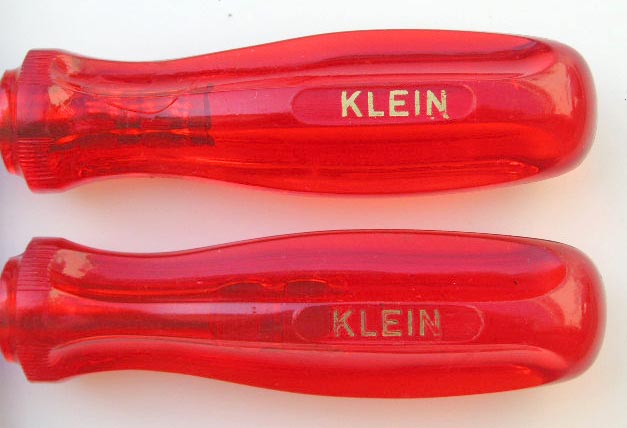

"Klein" printed on plastic handle
|
|
|
| |
|
|
|
|
